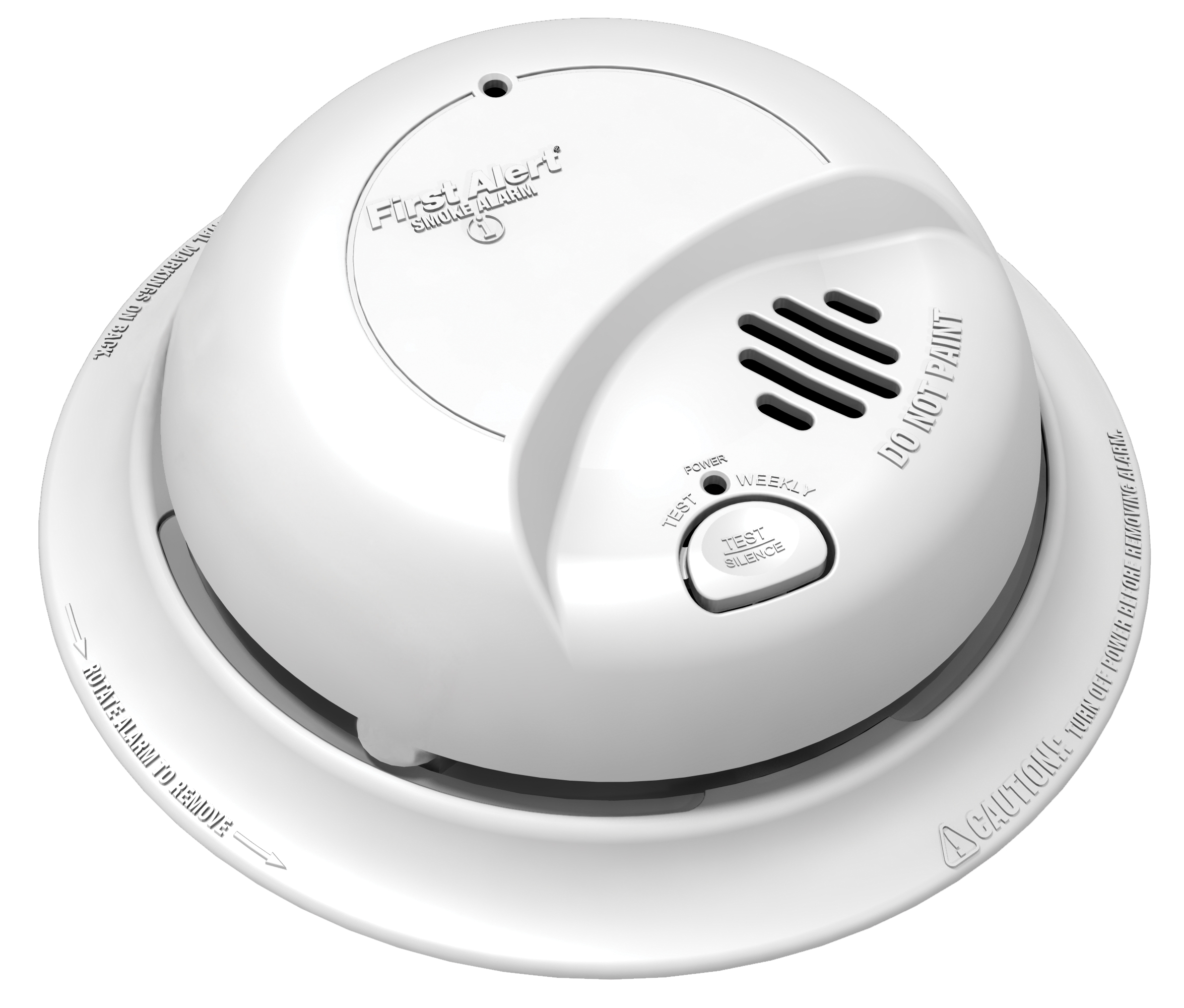

BRK® 9120 Wire-In Smoke Alarm, Dual Ionization Sensor, 120 VAC, 60 Hz, LED Display, 85 dB
The BRK Brands, Inc. model number 9120 is a wire-in, 120 VAC 60 Hz single and/or multiple station smoke alarm specifically designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories and other multi-family dwellings as defined in standard NFPA 101. The 9120 complies with UL217, CSFM, NFPA 72, HUD, FHA and other agencies that model their codes after the above agencies. It meets building codes where AC with Silence smoke alarms are required. The alarms are interconnectable with up to 18 devices, of which 12 can be smoke alarms. The BRK® 9120 alarm features a dual ionization smoke sensing chamber, an 85 dB horn and a silence feature. The Smart Technology system is designed to reduce nuisance alarms. Latching Alarm Indication remembers which unit initiated an alarm. When interconnected in a series, the unit that triggered the alarm rapidly flashes its red LED indicator. After the alarm condition subsides, the initiating unit will store in memory or latch the information and begin to flash the LED indicator 2 sonds on, 2 sonds off. The Perfect Mount system features a gasket less base and a mounting bracket that keeps the alarm secure over a wide rotation range to allow for true alignment. Other Contractor Preferred features include a dust cover to keep alarm clean during construction, keyhole slots in the mounting bracket eliminate the need to remove the electrical box screws for installation. Locking feature is provided to prevent theft of the unit. Connection to AC power is made with a quick connect wiring harness. Installation is quick, easy and cost effective.
-
BrandBRK®
-
UPC029054513007
-
Manufacturer Part Number9120
-
CountryUSA
-
Power Source120 VAC, 60 Hz
-
ColorWhite
-
TypeWire-In
-
Sensor TypeDual Ionization
-
Dimensions5.6 in Dia x 2 in H
-
Display TypeLED
-
Operating Temperature40 to 100 deg F
- Single button test/silence
- Latching alarm indicator remembers which unit initiated an alarm
- Smart technology helps reduce the number of nuisance alarms
- Perfect mount allows for easy alignment of alarm
- Dust cover
- Easy installation/maintenance, preferred features include a large opening in the mounting bracket for easy access to wiring
- Keyhole slots in the mounting bracket eliminate the need to remove the electrical box screws for installation
- A battery pull tab keeps the battery fresh until the home is occupied
- Battery installation and removal can occur while the unit is mounted to the ceiling or wall via the side load battery compartment
- Two locking features are provided to prevent battery theft and/or theft of the unit
- Connection to AC power is made with a quick-connect wiring harness
- 0.04 A (standby/alarm) operating current
- Electronically simulates smoke condition, causing the unit to alarm, press and hold test/silence button
- Automatic when smoke clears
- Up to 18 units of first alert or smoke, carbon monoxide and heat alarms, maximum of 12 smoke alarms
- Constant green LED AC power
- Red LED flashes rapidly local alarm
- Red LED out remote alarm
- Green LED flashes 2 s on/2 s off after local alarm latching alarm
| Cross-Reference Number |
|---|
| 557080 |
-
UNSPSC46191501
-
Package Description12/CS
-
Standards/ApprovalsUL 217|Buy American Act Compliant
-
Owners/User Manual
-
Specification Sheet
