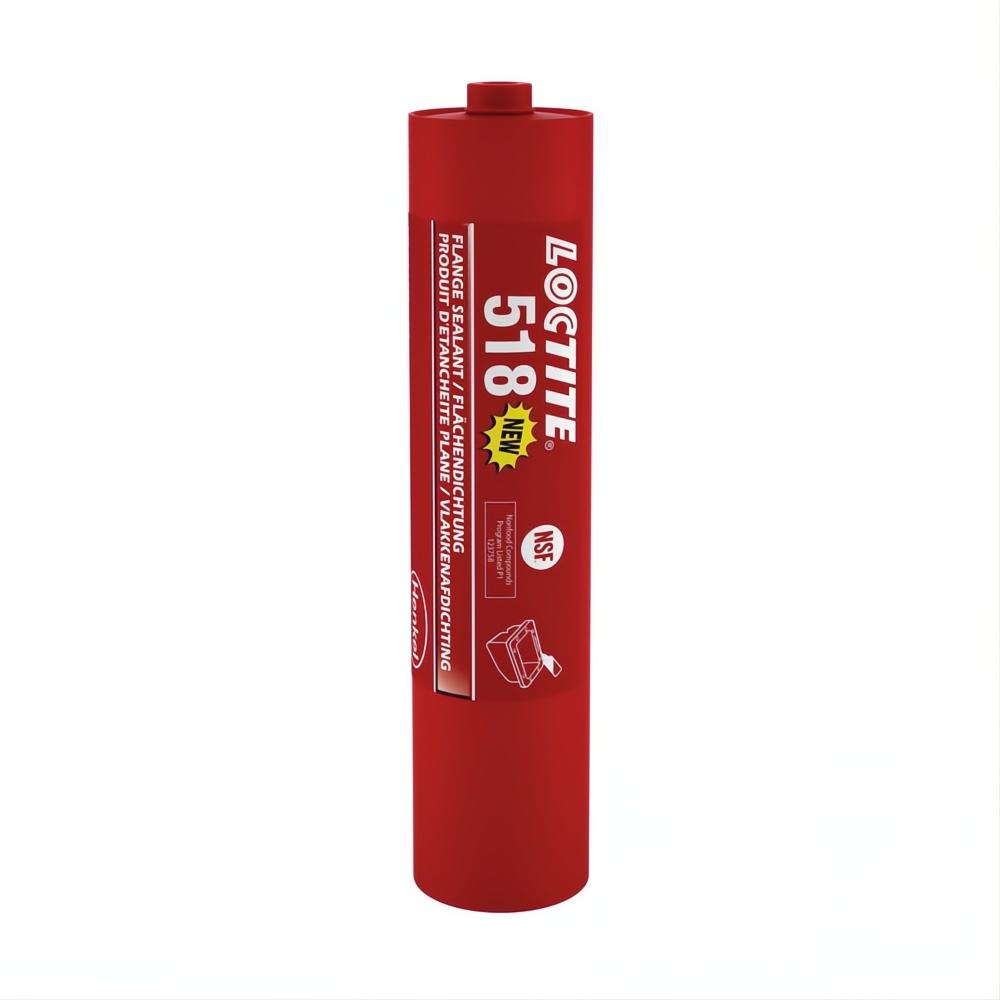

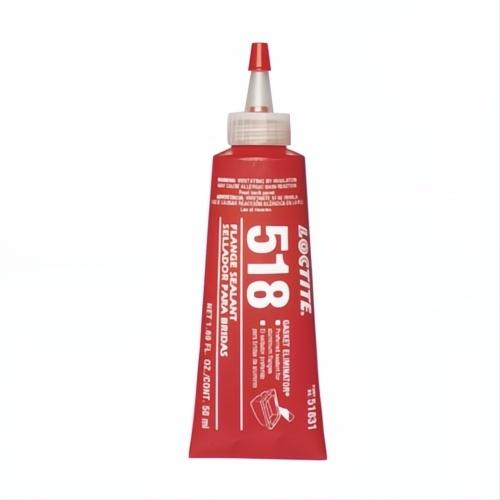

Loctite 50-ML #518 GASKET FLANGE SEALANT LOC 51831
LOCTITE® 518™ is a medium-strength, general purpose gasketing product with excellent contamination tolerance. Ideal for use on casted iron, steel and aluminum flanges. LOCTITE® 518™ cures when confined in the absence of air between close-fitting metal surfaces. It is an anaerobic gasketing material designed for use on rigid iron, aluminum, and steel flanged mating surfaces. LOCTITE® 518™ fills gaps up to 0.25 mm and forms a flexible, chemical-resistant seal that will not tear or decay. Parts disassemble easily, even after extended service. Typical applications include sealing close-fitting joints between rigid metal faces and flanges. It is also used as a formed-in-place gasket on rigid flanged connections, e.g. transmissions and motor housings.
-
BrandLoctite®
-
UPC079340010710
-
Manufacturer Part Number2096064
-
CountryUSA|Canada
-
Temperature Rating-65 to 300 deg F
-
Chemical TypeDimethacrylate Ester
-
ColorRed
-
TypeAnaerobic Medium Strength
-
VOC Content4.28 g/L
-
Container Size50 mL
-
Adheres toGaskets, Metal Threads, Steel and Brass, Fittings, Pipes, Valves, Gauges, Refrigerant Systems, Stem
-
Container TypeTube
-
Series518™
-
Curing Time4 hr
-
Work Life10 min
-
Specific Gravity1.1
-
Setting Time25 min
- Semi-flexible, medium-strength anaerobic flange gasket
- Easy to automate
- Reduces process costs - eliminates manual assembly of conventional gaskets
- For active and inactive rigid metal flanges
- Cures through minor surface contamination
- Adapts to flange surface irregularities and gaps up to 0.25 mm
- Gel-type consistency
- Seals instantly against low pressure
- Reduces inventory costs - no need for large inventory of cut gaskets
- Resists high pressure when fully cured
- No compression set or misaligned gaskets
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 49CR93 |
-
UNSPSC31201700
-
Package Description1/PK
-
Standards/ApprovalsNSF P1
-
