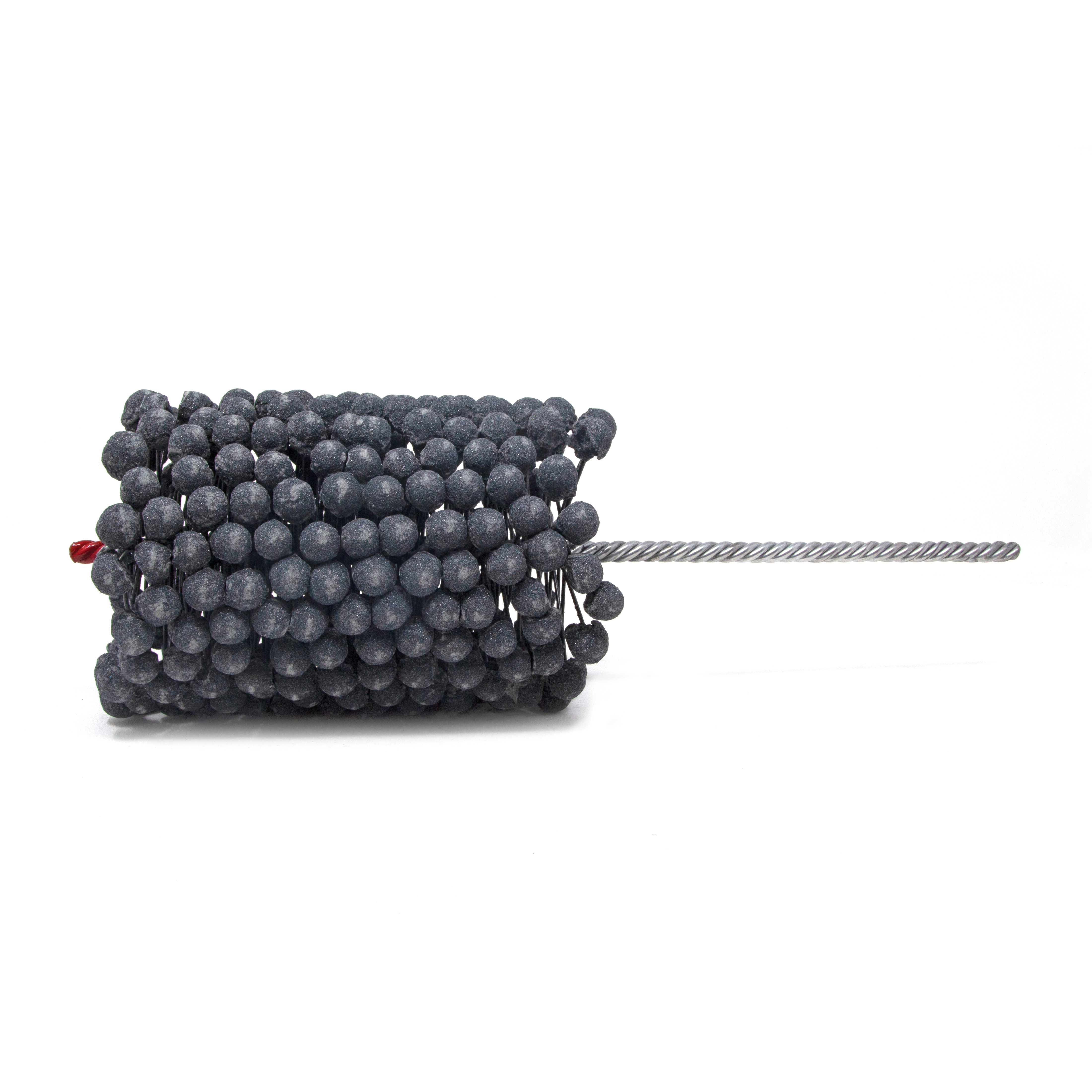

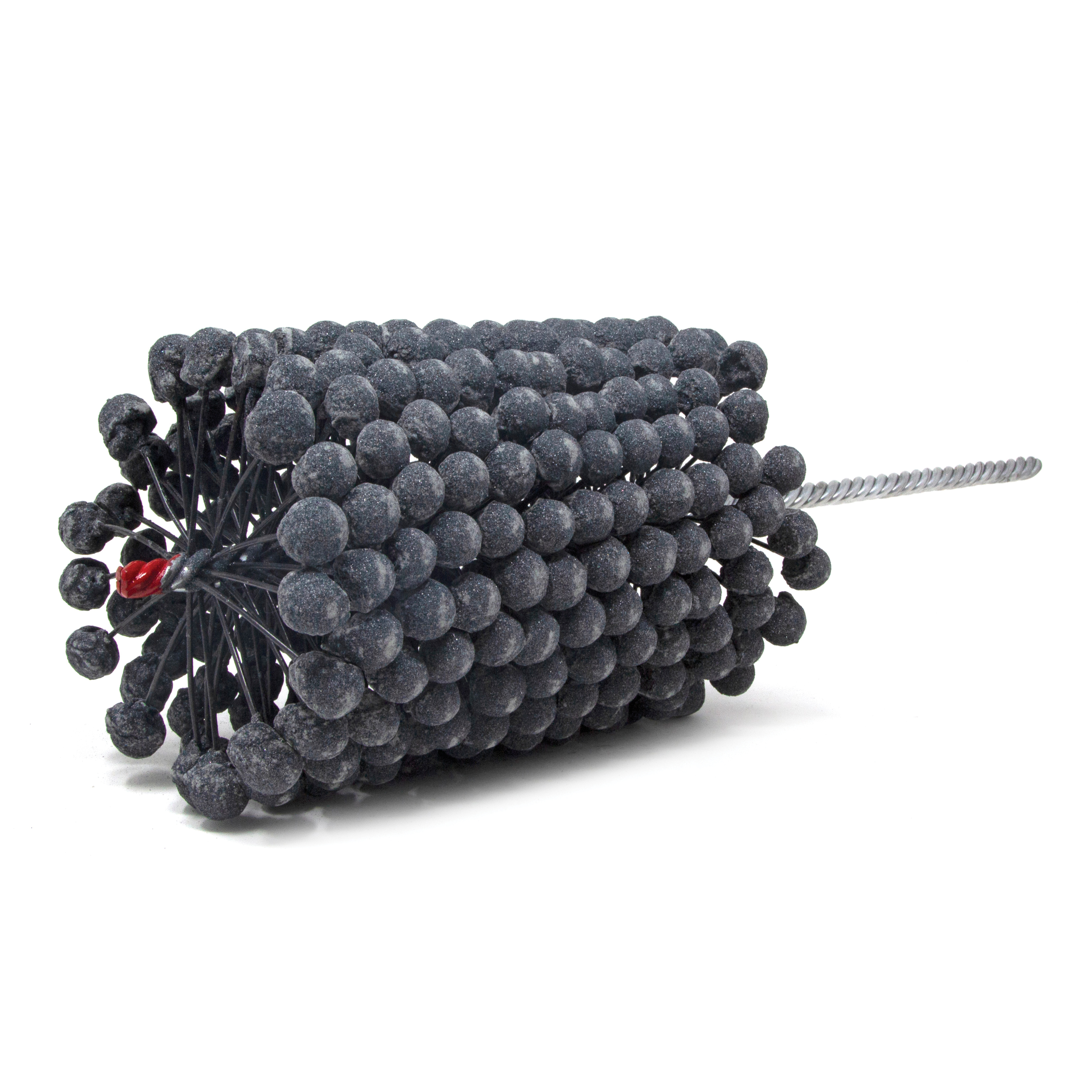

Flex-Hone® GBD41218 Heavy Duty Flexible Cylinder Hone, 4-1/2 in Dia Bore, 6 in L Abrasive, 13-1/2 in OAL, 180 Grit
The BRM Flex- Hone® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is available in a variety of different grits and sizes ranging from 4 mm to 36 in. Whether your need is cross hole deburring, surface finishing or edge blending there is a Flex- Hone® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. Finer grits can assist with achieving single RA finishes. In Automotive, Hydraulic, Pneumatic or Industrial applications, the Flex- Hone® Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject.
-
BrandFlex-Hone®
-
UPC843469150189
-
Manufacturer Part NumberGBD41218
-
CountryUSA
-
Maximum Speed1200 rpm
-
TypeHeavy Duty
-
Grit180
-
Abrasive Length6 in
-
Abrasive MaterialSilicon Carbide
-
Applicable MaterialsMild Steel, Stainless Steel, Cast Iron and Other Softer Ferrous Materials
-
SeriesGBD
-
Bore Diameter4-1/2 in
-
Overall Length13-1/2 in
- Proudly made in the USA
- Self centering, self aligning, self compensating for wear
- Can be used in virtually any rotating spindle
- Commonly used for finishing, deburring and edge breaking
- Typically achieves a finish of 30 to 40 uin (0.7 to 1 um)
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | MJ73450180 |
-
UNSPSC31191500
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Technical Bulletin
