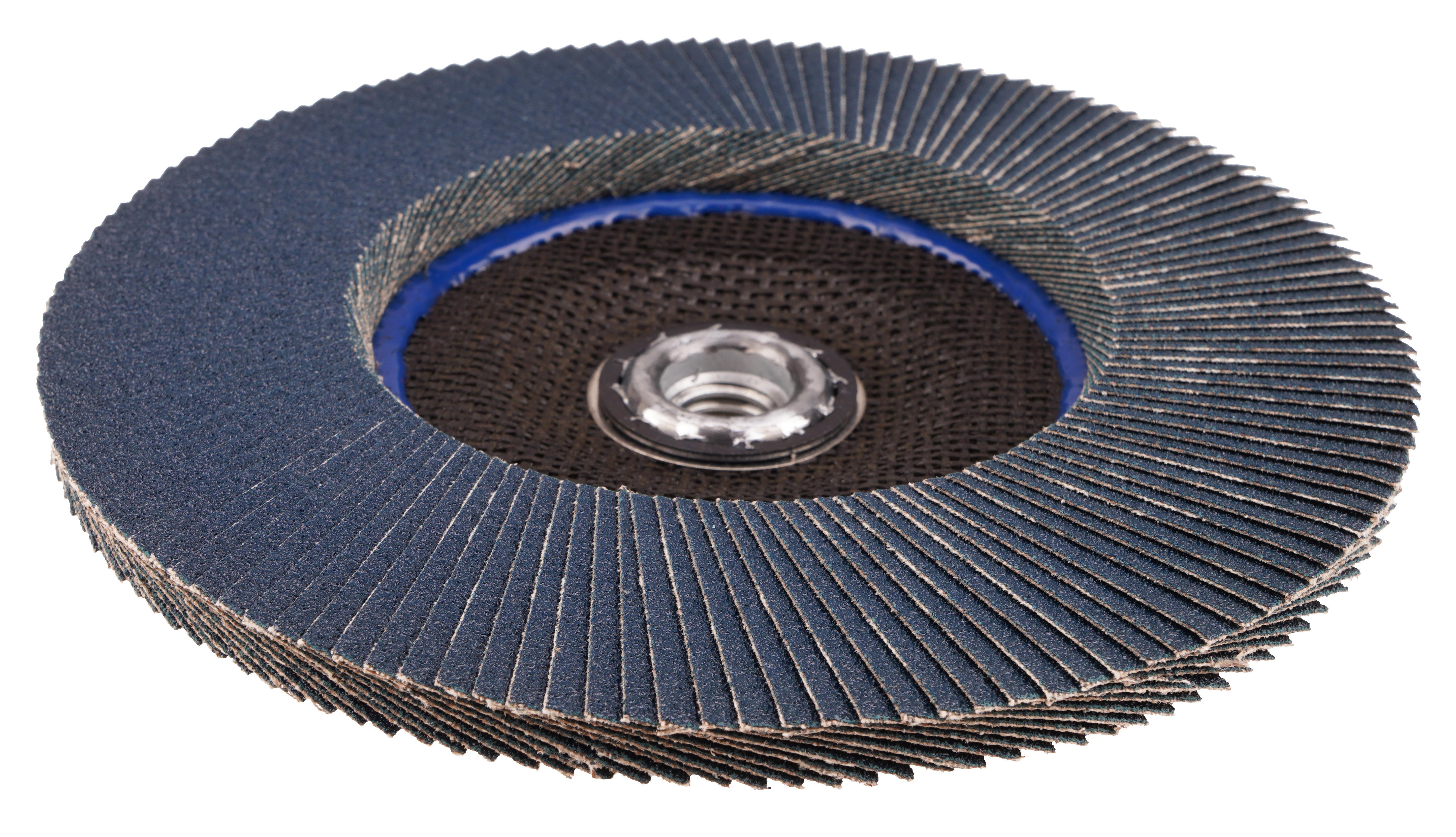

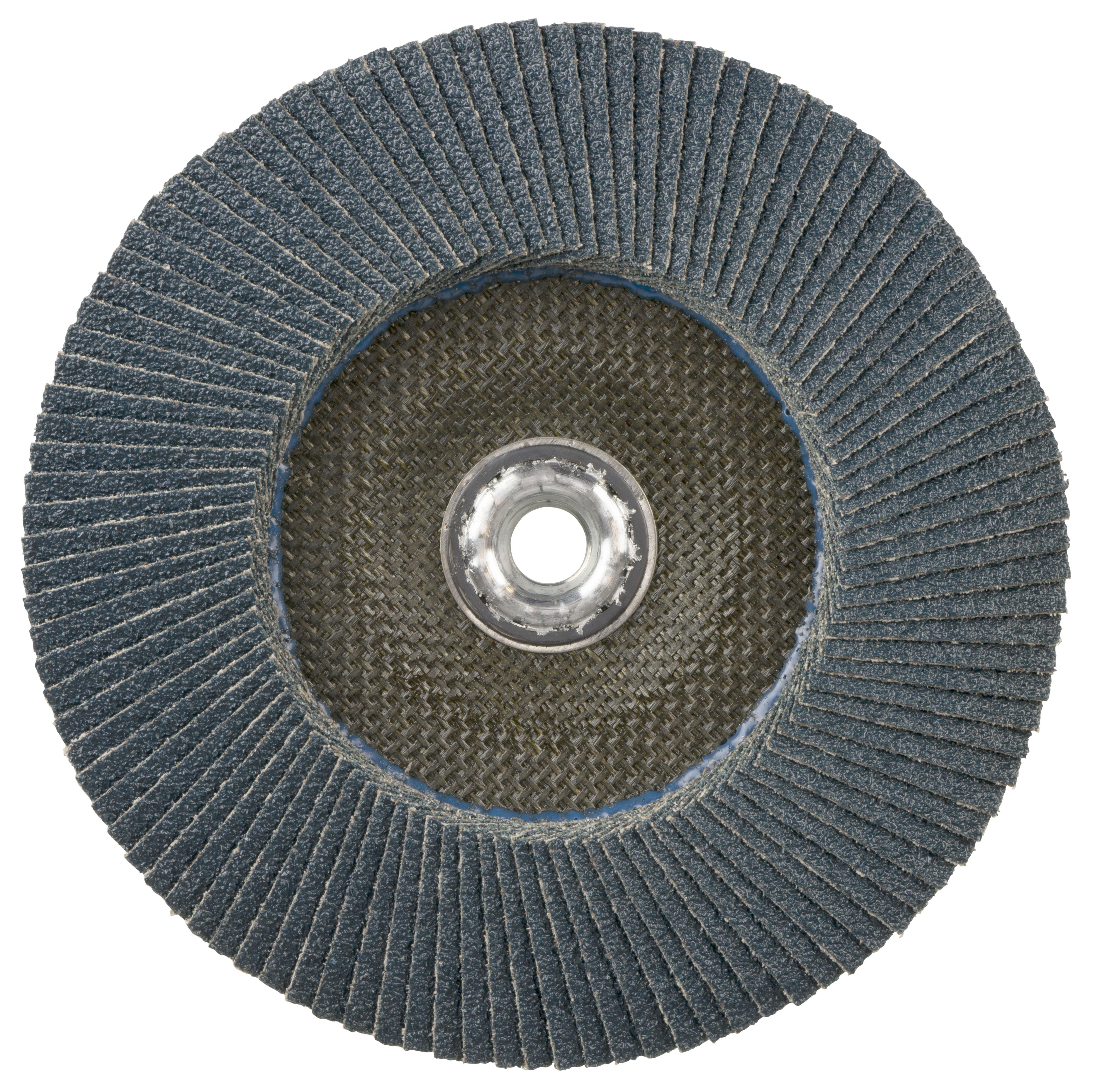

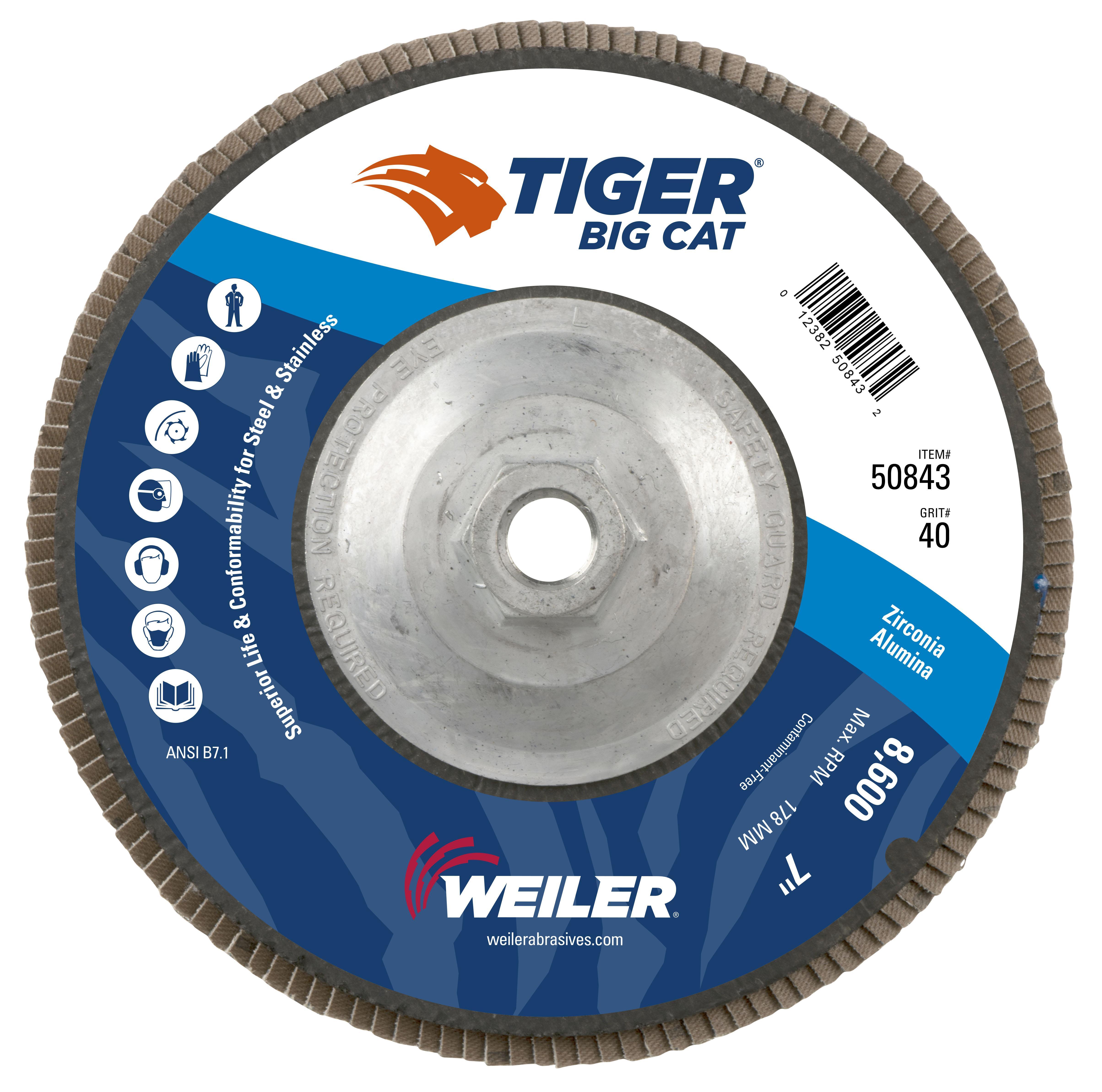

Big Cat® 50843 High Density Premium Coated Abrasive Flap Disc, 7 in Dia Disc, 40 Grit, Coarse Grade, Zirconia Alumina Abrasive, Type 27 Flat Disc
Big Cat® 50843 High Density Premium Coated Abrasive Flap Disc, 7 in Dia Disc, 40 Grit, Coarse Grade, Zirconia Alumina Abrasive, Type 27 Flat Disc
-
BrandBig Cat®
-
UPC012382508432
-
Manufacturer Part Number50843
-
CountryUSA|Canada
-
Maximum Speed8600 rpm
-
TypeHigh Density Premium
-
GradeCoarse
-
Grit40
-
Abrasive MaterialZirconia Alumina
-
Backing MaterialPhenolic
-
Disc Diameter7 in
-
Disc TypeType 27 Flat
- A thicker disc with larger flaps which conforms to curved and irregulars surfaces, resulting in a consistent finish
- Flap design results in 30-40 percent longer life than standard flap discs
- Thicker phenolic back provides more stability for the thicker cloth configuration
- Contaminant-free (contains less than 0.1% Fe, S, Cl)
- Self-sharpening zirconia alumina (ZA) grains hold up under high temperatures and extreme pressure
- 5/8 in - 11 metal nut allows for quick spin-on, spin-off changeover and eliminates cross-threading or sticking to spindle due to heat build-up
- Best on carbon steel, structural steel, stainless steel, and cast iron
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0811827 |
-
UNSPSC31191506
-
Package Description10/PK
-
Standards/Approvals29 CFR 1910.1200
-
Catalog
-
SDS
