MORSE C/Tool 1/2" SL-4-N TAPER CARBIDE BURRS MCT 59650

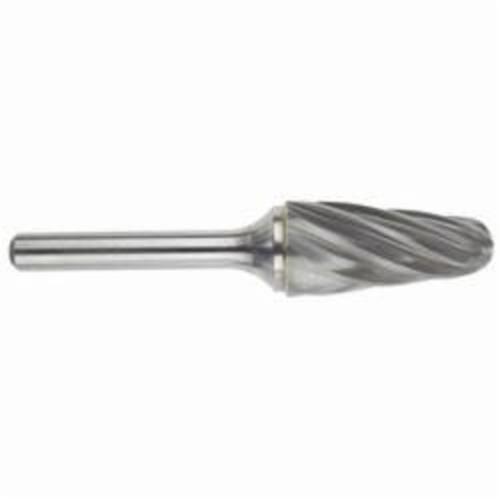

MORSE® 59650 5970 Carbide Burr, Radius End, Taper Head, 1/2 in Dia Head, 1-1/8 in L of Cut, 2-7/8 in OAL, Aluminum Cut
-
BrandMORSE®
-
UPC686125596507
-
Manufacturer Part Number59650
-
CountryUSA
-
Maximum Speed36000 rpm
-
Head CoatingBright
-
Head Diameter1/2 in
-
Head MaterialSolid Carbide
-
Head ShapeTaper
-
Applicable MaterialsAluminum, Non-Ferrous Metals, Soft Steel, Reinforced Plastics and other Soft Materials
-
Series5970
-
Cut TypeAluminum
-
Shank Diameter1/4 in
-
Included Angle14 deg
-
Industry SpecificationSL-4NF
-
End TypeRadius
-
Length of Cut1-1/8 in
-
Overall Length2-7/8 in
- High flute design for easy chip flow and fast stock removal
- Provides excellent work finish with minimum loading when cutting soft, sticky metals
-
UNSPSC23251706
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov
-
