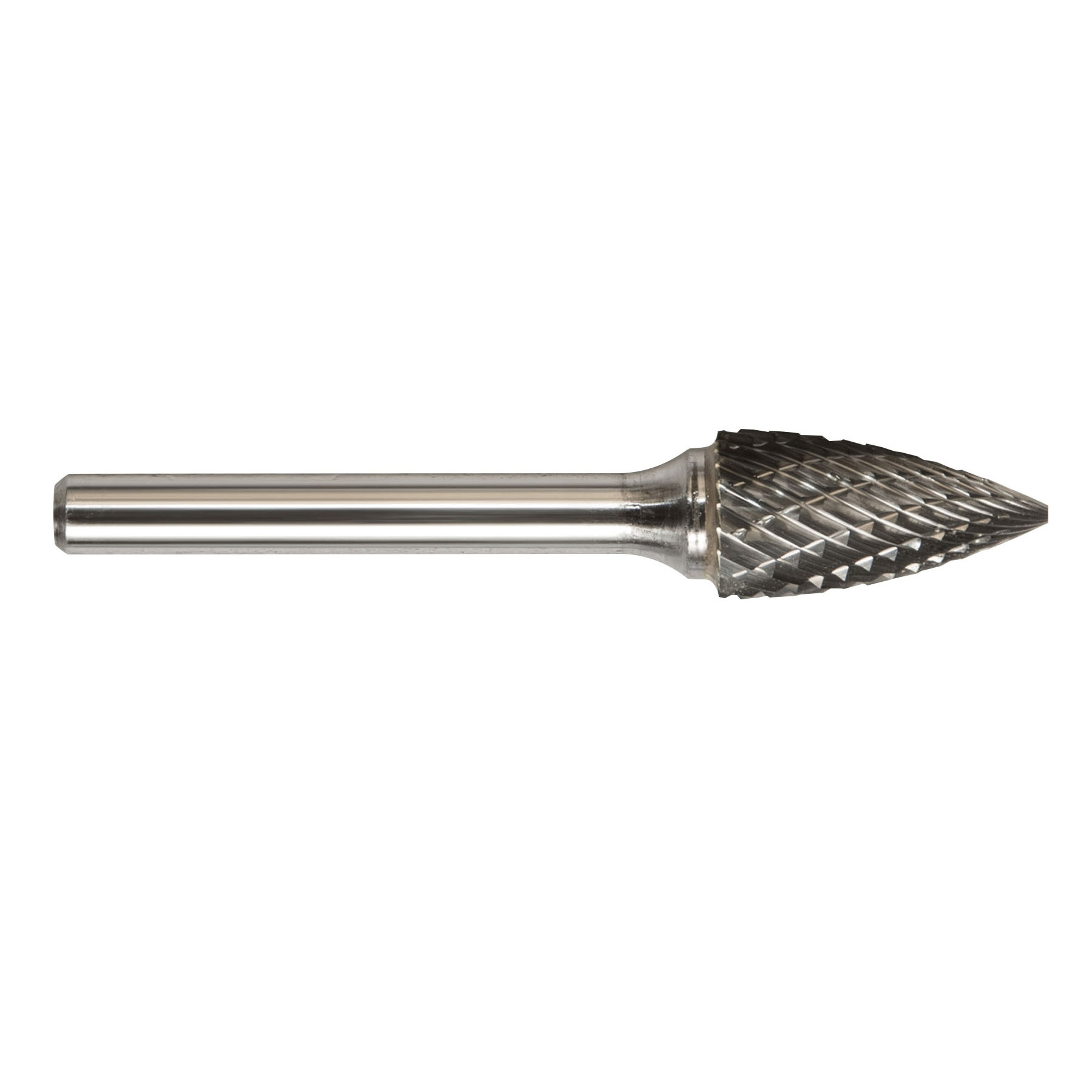

DRILLCO 7G116ADC 7000G Carbide Burr, Pointed End, Tree Head, 1/4 in Dia Head, 5/8 in L of Cut, Double Cut
Drillco solid carbide burrs are extremely versatile. Manufactured from premium grade tungsten carbide. Burrs are available in standard lengths (single and double cut), 6" long series, and in miniature sizes (for use in pencil grinders).
-
BrandDrillco
-
UPC045997296265
-
Manufacturer Part Number7G116ADC
-
CountryUSA|Canada
-
Maximum Speed50000 rpm
-
Head Diameter1/4 in
-
Head MaterialSolid Carbide
-
Head ShapeTree
-
Applicable MaterialsAluminum, Brass, Cast Iron, Copper, Magnesium Plastics, Steel and Stainless Steel
-
Series7000G
-
Cut TypeDouble
-
Shank Diameter1/4 in
-
Industry SpecificationSG-1
-
End TypePointed
-
Length of Cut5/8 in
- Double cut tooth design for aggressive material removal
- Optimal flute geometry for fast removal and fine finish
- Brazed shank for perfect concentricity and reduced vibrations
- The double cut design also produces an easy to handle granular type chip, in most metals, as opposed to the conventional sliver type chips
- Throughout it's life, the double cut gives faster stock removal, less operator fatigue, and maintains a good finish on the widest possible variety of materials
- Double cut tooth design for aggressive material removal
- Optimal flute geometry for fast removal and fine finish
- Brazed shank for perfect concentricity and reduced vibrations
-
UNSPSC23251706
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
-
SDS
-
Catalog
