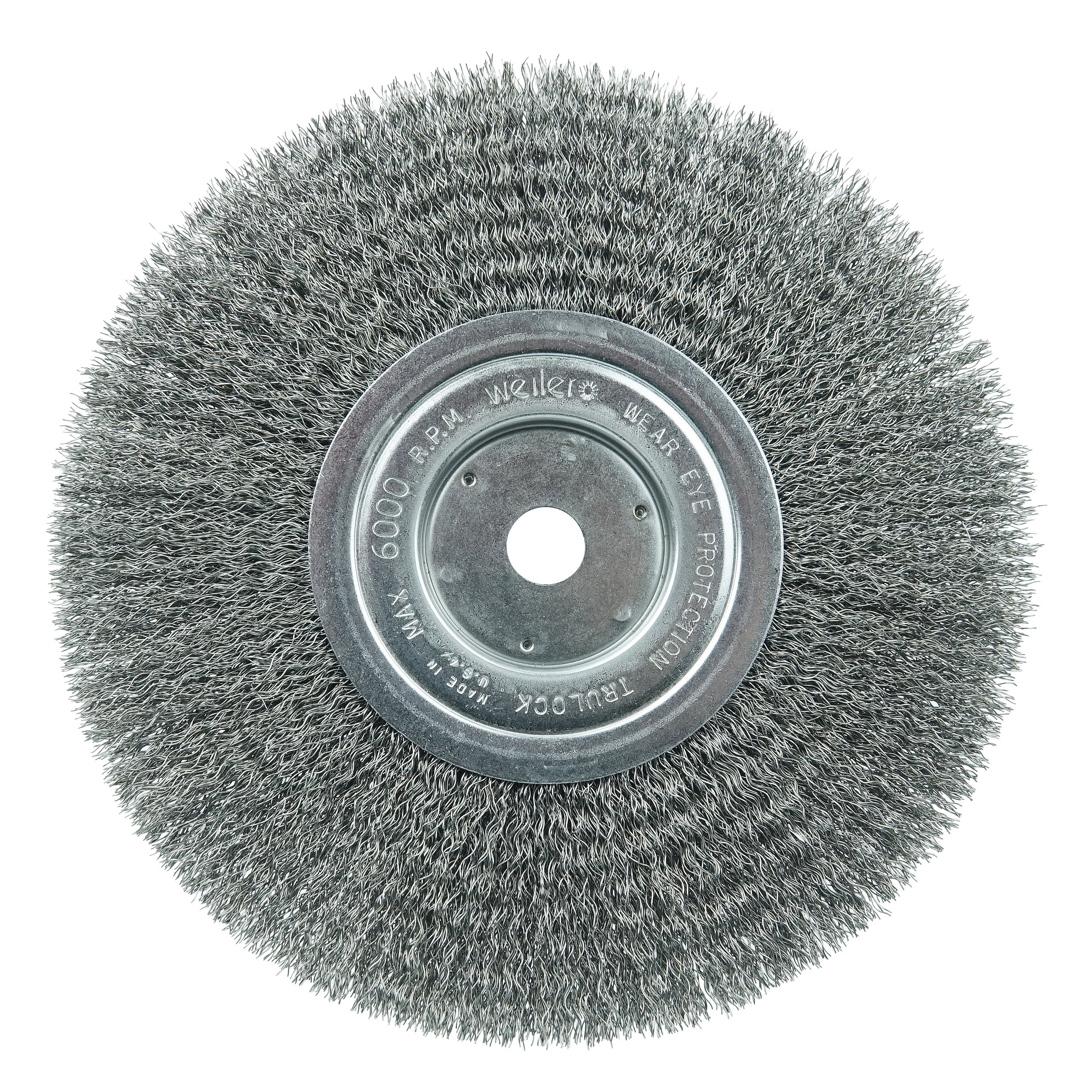

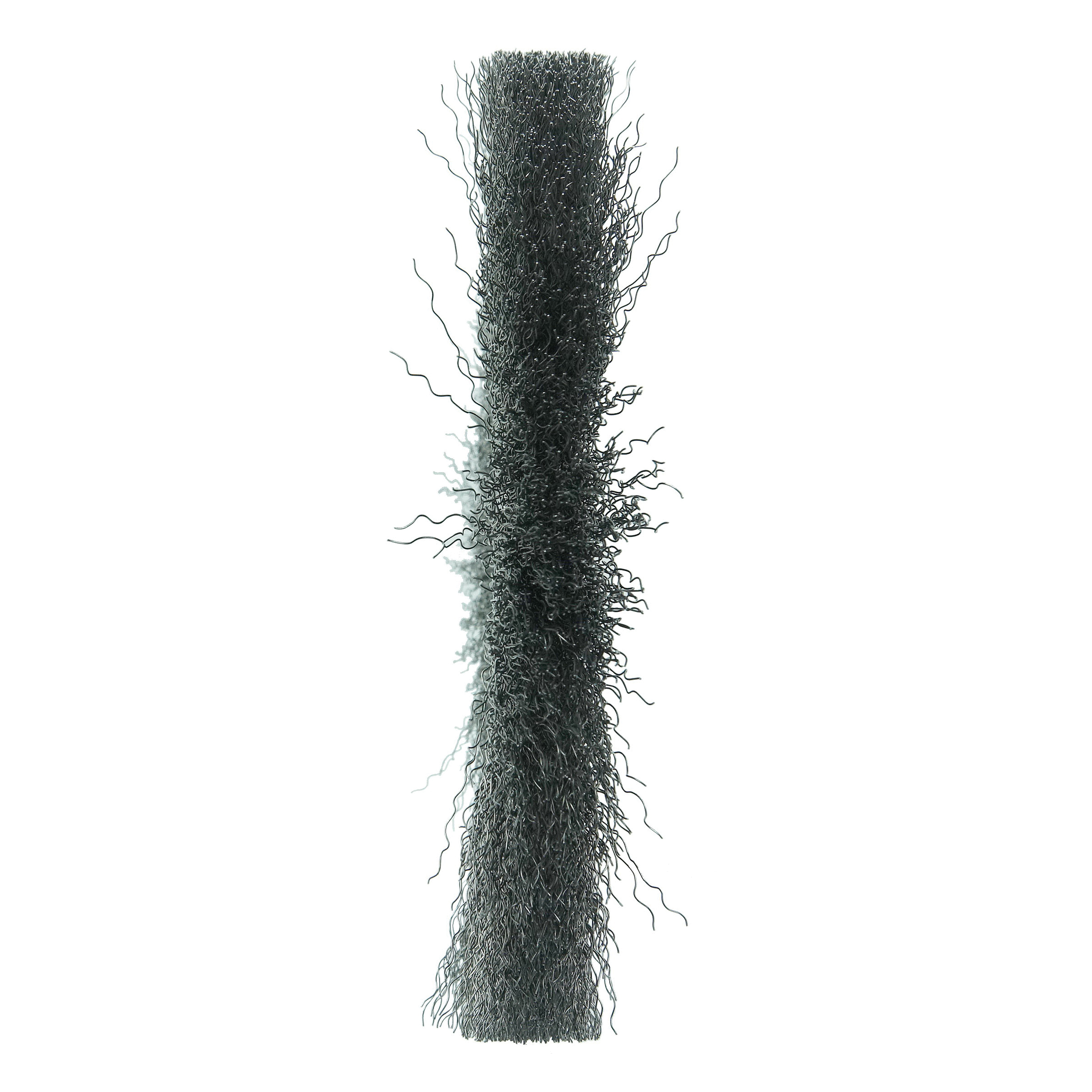

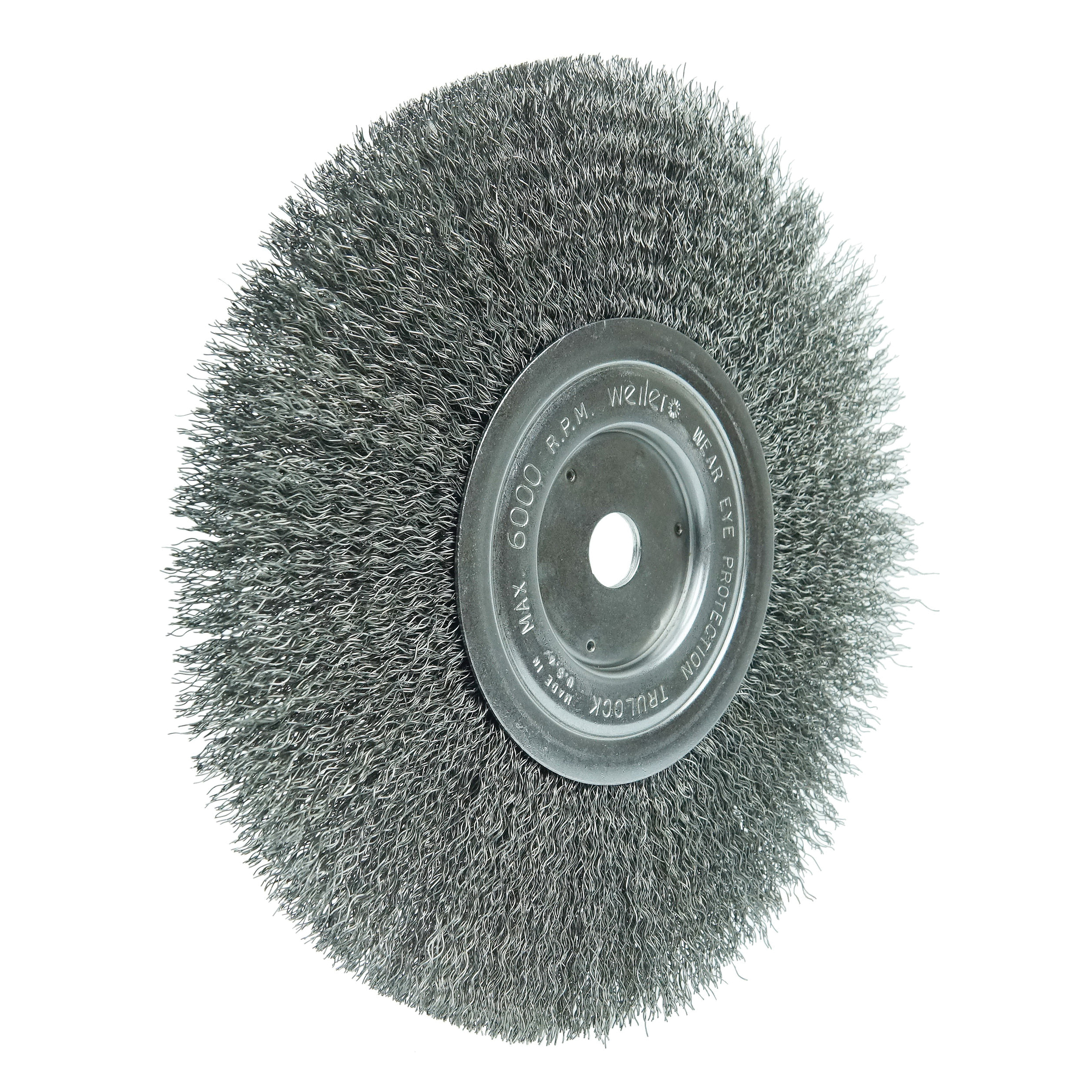

Weiler® 01165 TLN-8 Narrow Face Wheel Brush, 8 in Dia Brush, 3/4 in W Face, 0.0118 in Dia Filament/Wire Crimped Filament/Wire, 5/8 in Arbor Hole
Weiler® 01165 TLN-8 Narrow Face Wheel Brush, 8 in Dia Brush, 3/4 in W Face, 0.0118 in Dia Filament/Wire Crimped Filament/Wire, 5/8 in Arbor Hole
-
BrandWeiler®
-
UPC012382011659
-
Manufacturer Part Number01165
-
CountryUSA|Canada
-
Face Width3/4 in
-
Filament/Wire Diameter0.0118 in
-
Filament/Wire TypeCrimped
-
Fill MaterialSteel
-
Maximum Speed6000 rpm
-
Trim Length2-1/16 in
-
TypeNarrow Face
-
Arbor Hole Size5/8 in
-
SeriesTLN-8
-
Attachment TypeUnthreaded Arbor
-
Brush Diameter8 in
- Intended for use on straight grinders and stationary machines such as bench or pedestal grinders and buffing lathes
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | MK5101165 |
| MSC | 75843474 |
| Fastenal | 0813143 |
-
Alternative Part Number1165
-
UNSPSC31171805
-
Package Description2/PK
-
Standards/ApprovalsANSI B165.1
-
SDS
