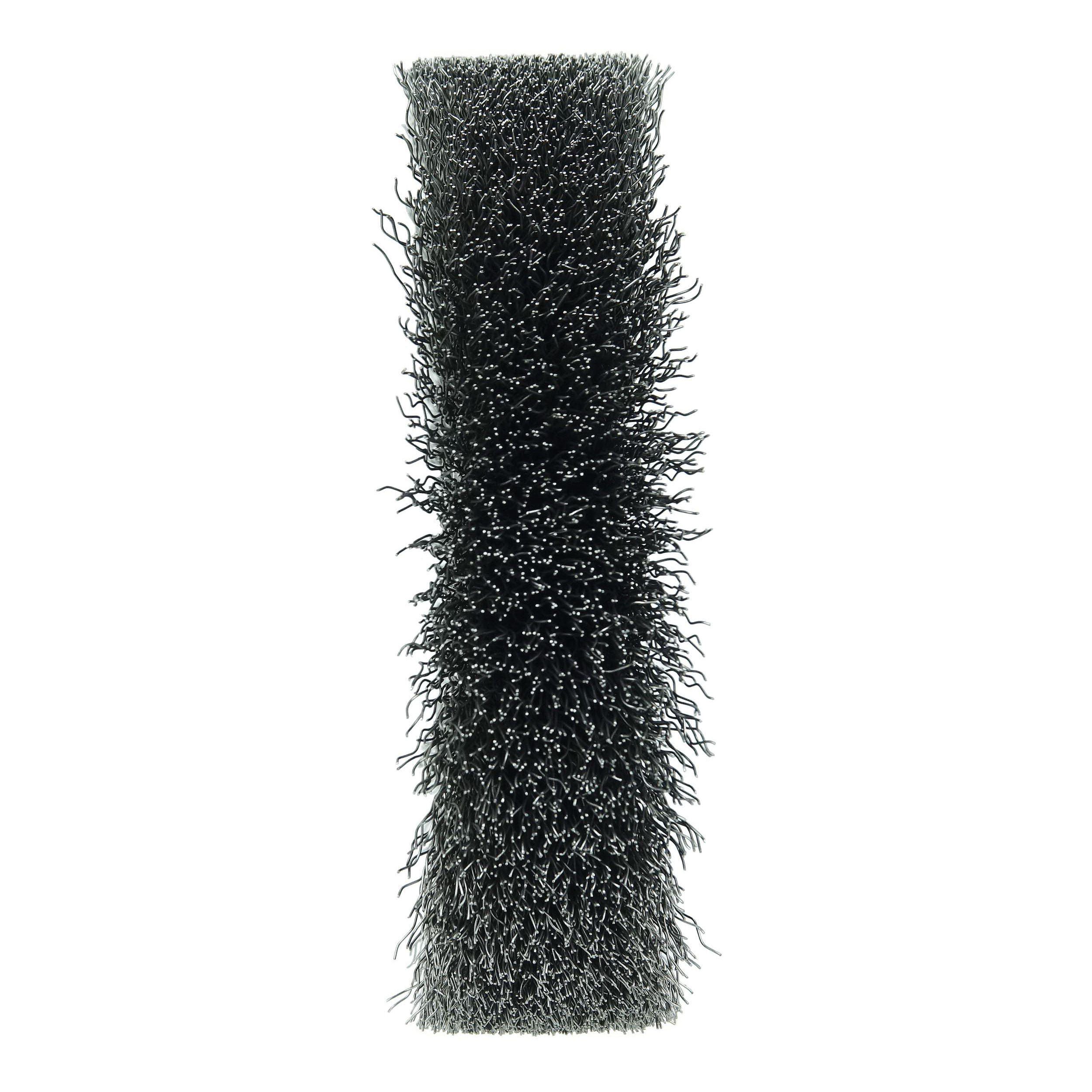

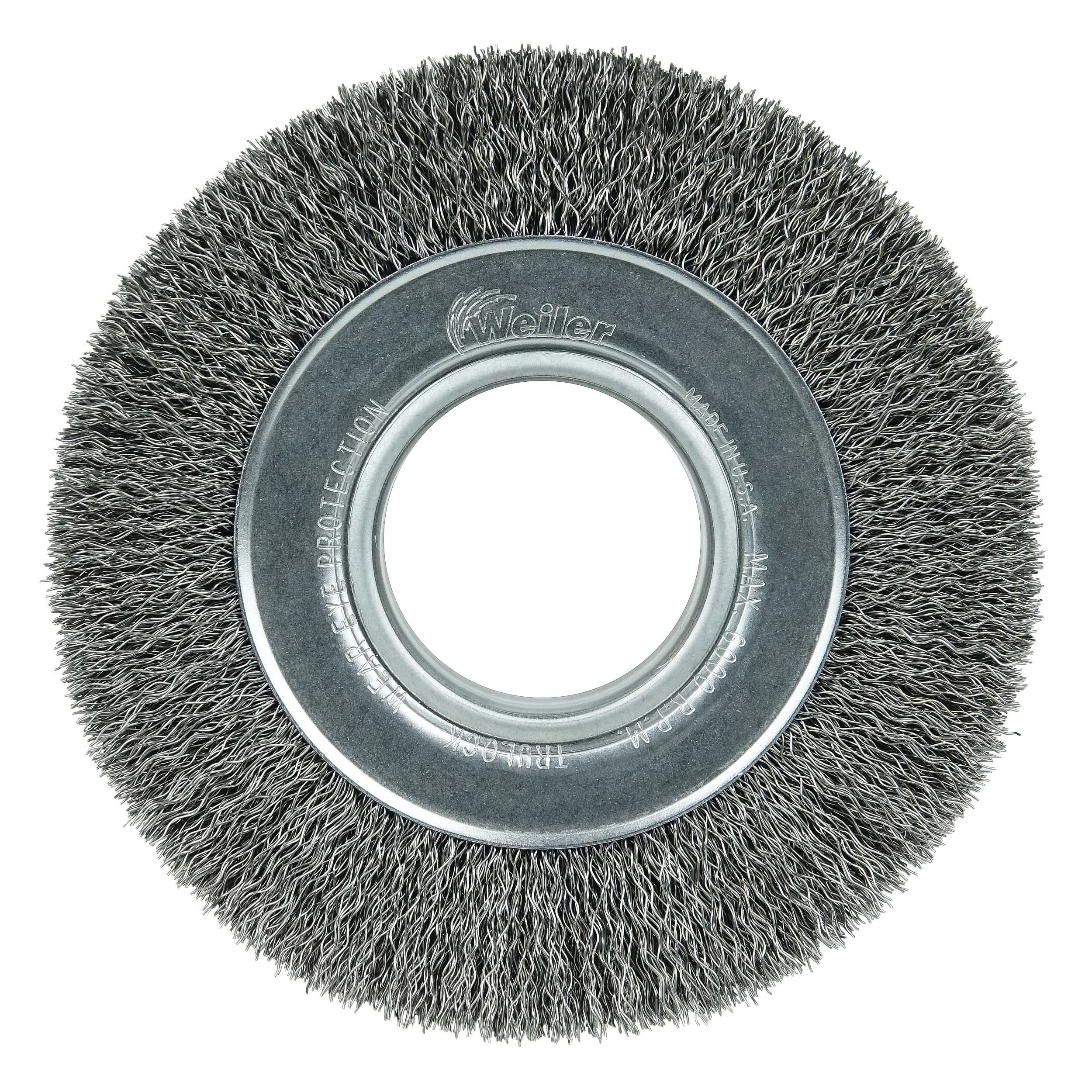

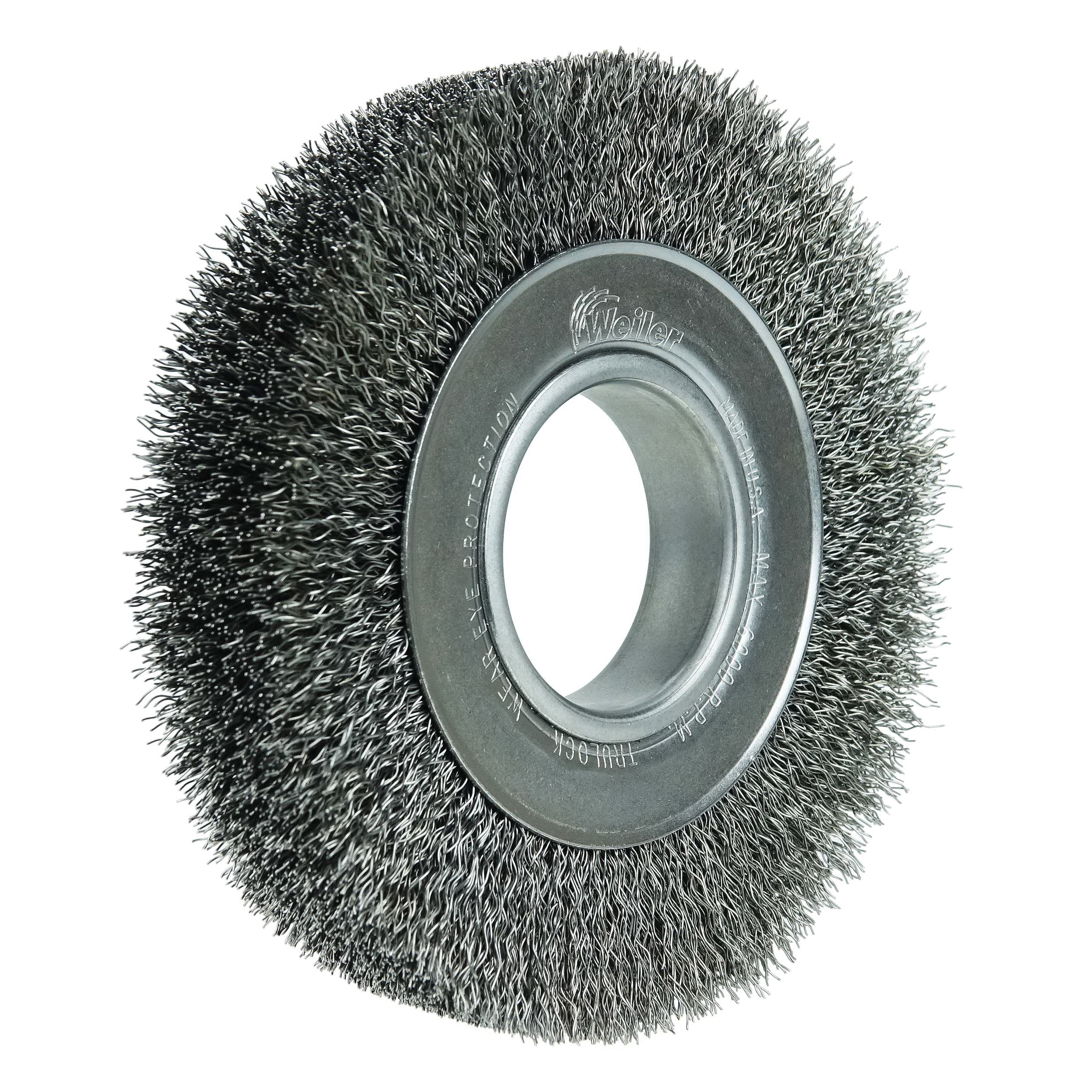

Weiler® 03060 TL-6 Wide Face Wheel Brush, 6 in Dia Brush, 1-1/4 in W Face, 0.0118 in Dia Filament/Wire Crimped Filament/Wire, 2 in Arbor Hole
Weiler® 03060 TL-6 Wide Face Wheel Brush, 6 in Dia Brush, 1-1/4 in W Face, 0.0118 in Dia Filament/Wire Crimped Filament/Wire, 2 in Arbor Hole
-
BrandWeiler®
-
UPC012382030605
-
Manufacturer Part Number03060
-
CountryUSA|Canada
-
Face Width1-1/4 in
-
Filament/Wire Diameter0.0118 in
-
Filament/Wire TypeCrimped
-
Fill MaterialSteel
-
Maximum Speed6000 rpm
-
Trim Length1-1/8 in
-
TypeWide Face
-
Arbor Hole Size2 in
-
SeriesTL-6
-
Attachment TypeUnthreaded Arbor
-
Brush Diameter6 in
- Provides a flexible brushing action and consistent performance for demanding light duty cleaning and deburring applications
- Feature a wider face width to cover more area
- Maximum wire density and aggression
- Covers more surface area in a single pass
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | MK5103060 |
| Fastenal | 0813174 |
-
Alternative Part Number3060
-
UNSPSC31171805
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B165.1|OSHA 29 CFR 1910.1200|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
-
SDS
