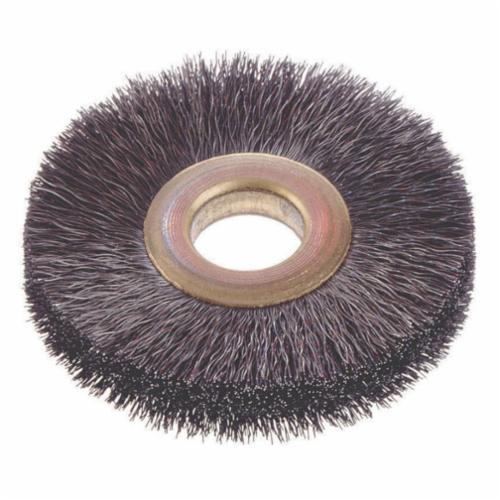

Osborn Brush 1-1/2" CRIMPED WIRE BRASS BRUSHES OSB 11251
Osborn 11251 Small Diameter Wheel Brush, 1-1/2 in Dia Brush, 7/32 in W Face, 0.005 in Dia Crimped Filament/Wire, 3/8 in Arbor Hole
-
BrandOsborn
-
UPC622424112512
-
Manufacturer Part Number0001125100
-
CountryUSA
-
Face Width7/32 in
-
Filament/Wire Diameter0.005 in
-
Filament/Wire TypeCrimped
-
Fill MaterialBrass
-
Maximum Speed20000 rpm
-
Trim Length3/8 in
-
TypeSmall Diameter
-
Arbor Hole Size3/8 in
-
Attachment TypeUnthreaded Arbor
-
Brush Diameter1-1/2 in
- Specially designed for effective brushing operations on internal surfaces and other hard-to-reach areas
- Can be mounted, singly or in multiples, directly onto the shaft of a portable tool
-
UNSPSC31171805
-
Package Description12/PK
-
Standards/ApprovalsANSI B165.1|ANSI B165.2
-
